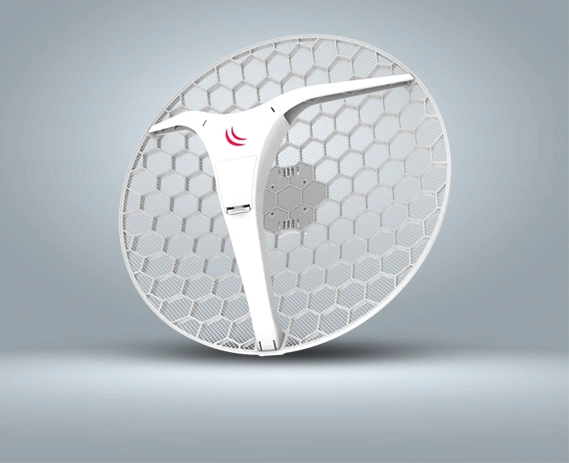

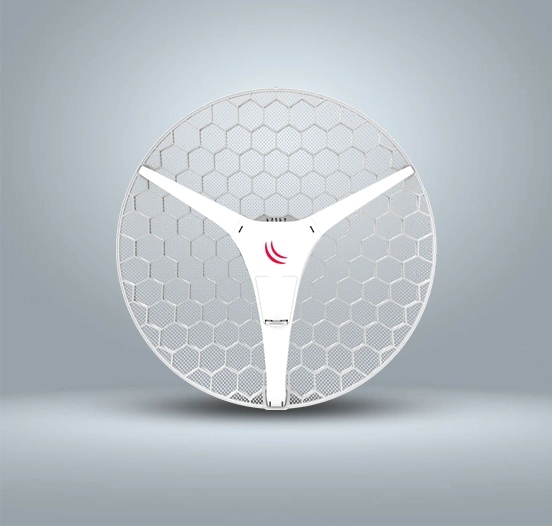

The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, capable of reaching up to 40km in full-speed point-to-point configurations.
Designed for high-capacity backbone and long-distance deployments, the LHG XL HP5 ensures stable connectivity even in demanding outdoor conditions. Its high-gain 27 dBi antenna and increased transmit power provide focused signal transmission with improved noise immunity and reduced interference. The lightweight grid construction minimizes wind load, while RouterOS enables advanced features such as bandwidth management, secure wireless protocols, and detailed monitoring, making it a powerful and reliable solution for professional network installations.
Four directional antennas for long-range 5 GHz links.
Up to 300 Mbps with dual-chain MIMO.
Power and data over a single cable, 7 W per unit.
Weather-resistant, works from 40 °C to 70 °C.
The MikroTik RBLHG-5HPnD-XL 4-pack is an outdoor wireless kit featuring a single-core AR9344 CPU at 600 MHz, 64 MB RAM, and 16 MB FLASH storage, running RouterOS License Level 3. Each unit measures Ø 550 × 245 mm and operates in temperatures from -40 °C to 70 °C, powered via passive PoE (10–28 V) with a maximum consumption of 7 W. For wireless performance, each device operates on the 5 GHz band (Wi-Fi 4, 802.11a/n) with a 27 dBi high-gain directional antenna, delivering speeds up to 300 Mbps over 2×2 chains using the AR9344 chipset. Networking is provided via a 10/100 Mbps Ethernet port, offering stable long-range point-to-point links with transmit power up to 28 dBm and receive sensitivity down to -96 dBm, making this 4-pack ideal for scalable outdoor deployments.
